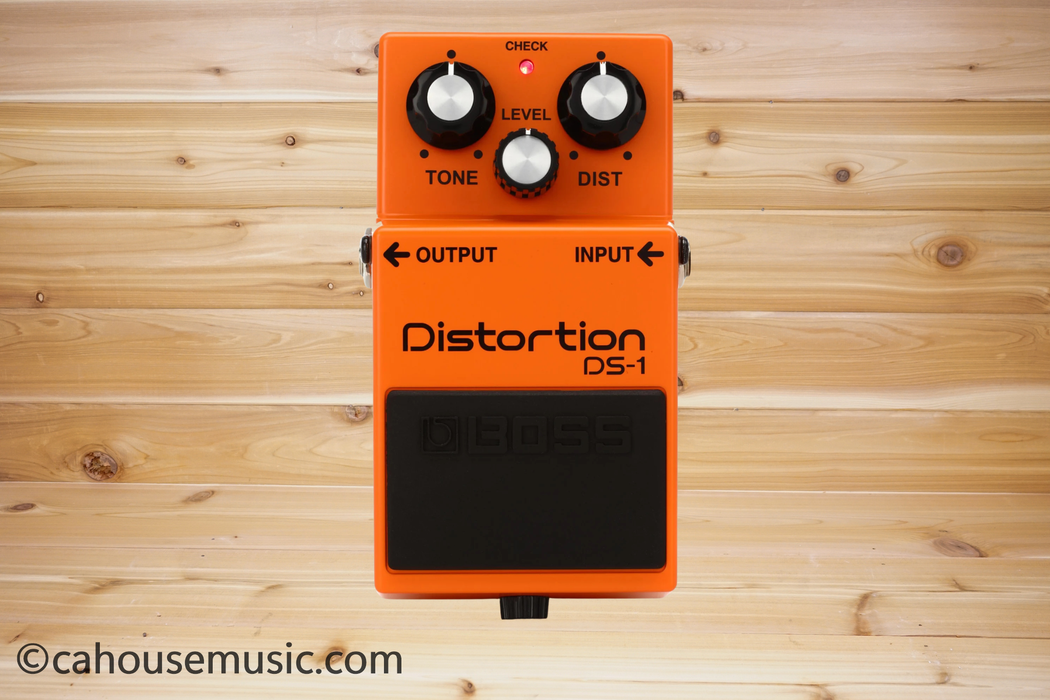

The Orange Box That Started It All
There's a reason the Boss DS-1 has been sitting on pedalboards since 1978. It's not nostalgia — it's that the thing just works. Plug in, stomp, and you've got hard-edged distortion with clear articulation that doesn't turn your chord voicings into mush. That's a harder trick to pull off than it sounds, and Boss got it right on the first try.
The DS-1 uses a two-stage analog circuit — transistor pre-amp into an op-amp gain stage — that produces hard-clipping distortion with a surprising amount of note definition. You can dig in with pick attack and hear individual strings, which isn't a given at higher gain settings on a lot of pedals.
Whether you're building your first pedalboard or filling a gap in a gigged rig, the DS-1 is a genuinely useful distortion pedal with a track record that speaks for itself.
Three Knobs, Wide Range
The DS-1 keeps the control layout simple: Distortion, Tone, and Level. The Distortion knob is your gain control, moving from a restrained crunch all the way to saturated, sustain-heavy drive. The Level knob sets your output relative to your dry signal — useful for matching volumes between your clean and dirt sounds.
The Tone control is the interesting one. Rather than a simple high-cut, Boss designed it as a tilt EQ that simultaneously affects both the high and low end of the spectrum with a single knob rotation. Turn it one way and you're boosting highs while cutting lows; go the other direction and the low end opens up. It gives you real tonal flexibility without adding extra controls.
One thing worth knowing: the DS-1 has a naturally scooped midrange character. Players often find it pairs well with amps that have a present midrange — classic Marshalls and Fender tweed-style amps tend to complement it nicely.
Analog Circuit, Buffered Signal Path
The DS-1 is an all-analog pedal. Its circuit combines transistor and op-amp gain stages into a single hard-clipping design, and that combination is a big part of what gives it its particular character — clarity in the attack, with harmonic richness in the sustained notes.
Like all Boss compact pedals, the DS-1 uses buffered bypass rather than true bypass. The signal always passes through the input and output buffers, even when the effect is disengaged. For many players running longer cable runs or several pedals in a chain, this is actually a feature — the buffer keeps your signal strong and consistent. It's worth knowing either way.
The DS-1 works well in a variety of signal chain contexts. Boss notes it plays nicely with both clean and mildly driven amps, and it can function as a boost into an already-driven amp when the Distortion knob is dialed back.
Built to Last, Runs on 9V
Boss compact pedals are known for their rugged metal enclosures, and the DS-1 is no different. The chassis is built for real-world use — rehearsals, stages, session work — with a rubberized stomp pad and base to keep it planted on your board.
Power is straightforward: 9V battery (carbon-zinc or alkaline) or a Boss PSA-series AC adapter (sold separately). Current draw is 20mA, which is well within range of most multi-output power supplies.
Product Features:
-
Effect Type: Analog distortion with hard-clipping circuit (transistor + op-amp two-stage design)
-
Controls: Distortion (gain), Tone (tilt EQ), and Level (output) knobs plus footswitch
-
Tone Control: Tilt-style EQ that simultaneously adjusts highs and lows with a single knob
-
Bypass: Buffered bypass — signal passes through input/output buffers when effect is off
-
Power: 9V battery (carbon-zinc or alkaline) or Boss PSA-series AC adapter (sold separately)
-
Current Draw: 20mA
-
Input Impedance: 1MΩ; Output Impedance: 1kΩ
-
Build: Rugged Boss metal chassis with rubberized stomp area and base
-
Heritage: In continuous production since 1978 — Boss's first and longest-running distortion pedal
Brand: Boss
Model: DS-1
SKU: DS-1
Condition: New
